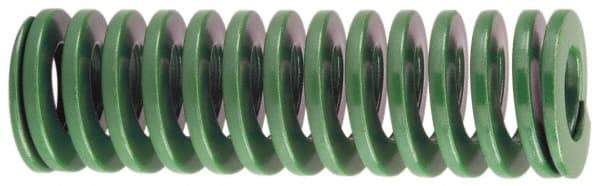

Dayton Lamina - 3/4" Hole Diam, 3/8" Rod Diam, 5-1/2" Free Length, Green Die Spring - 4.85 Lb Max Deflection, 2.2" Max Deflection, Light Duty, Chromium Vanadium Steel
Item #: 76010727
Brand: Dayton Lamina
Model #: 9-1222-11
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 3/4 |
| Rod Diameter (Inch) | 3/8 |
| Free Length (Inch) | 5-1/2 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (Lb.) | 4.85 |
| Maximum Deflection (Decimal Inch) | 2.2000 |
| Travel To Solid Load (Decimal Inch) | 2.8600 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
