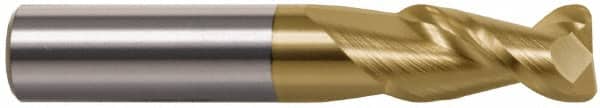

Accupro - 5/8" Diam 2 Flute Solid Carbide 0.12" Corner Radius End Mill
Item #: 76004878
Brand: Accupro
Model #: 25062526120C5
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.1200 |
| Number of Flutes | 2 |
| Material | Solid Carbide |
| Finish/Coating | ZrN |
| Length of Cut (Inch) | 1-5/8 |
| Length of Cut (Decimal Inch) | 1.6250 |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 3-1/2 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 45.00 |
| Variable Helix | No |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Length Type | Regular |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.002 |
| Shank Diameter Tolerance (Decimal Inch) | +0.0001/-0.0004 |
| Extended Reach | No |
