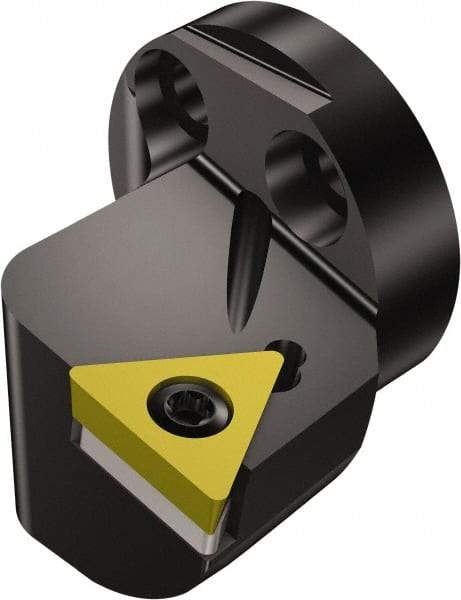

Sandvik Coromant - Right Hand Cut, Size 20, TCMT 110304 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 13mm Ctr to Cutting Edge, 20mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 75989434
Brand: Sandvik Coromant
Model #: 5764420
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 20 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 20.00 |
| Head Length/Projection (Decimal Inch) | 0.7874 |
| Insert Style | TCMT 110304 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Insert Holding Method | Screw; Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 20.00 |
| Maximum Hole Depth (Decimal Inch) | 0.7874 |
| Minimum Hole Diameter (mm) | 25.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.9843 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | -4 |
| Neck Diameter (mm) | 20.00 |
| Neck Diameter (Decimal Inch) | 0.7874 |
| Complete Insert Compatibility | TCMT 110304 |
| Head Connection Size | C4 |
