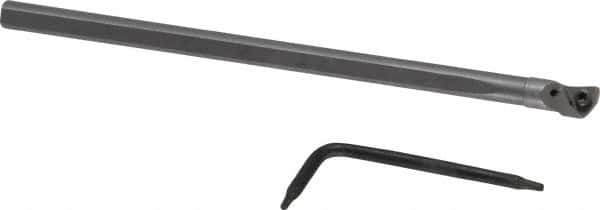

Kennametal - 6.6mm Min Bore Diam, 101.6mm OAL, 4.76mm Shank Diam, E-SWLP Indexable Boring Bar - WP.. Insert, Screw Holding Method
Item #: 75954792
Brand: Kennametal
Model #: 1152750
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-SWLP |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 6.60 |
| Minimum Bore Diameter (Decimal Inch) | 0.2600 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 101.60 |
| Overall Length (Decimal Inch) | 4.0000 |
| Shank Diameter (mm) | 4.76 |
| Shank Diameter (Decimal Inch) | 0.1880 |
| Insert Compatibility | WP.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | -5 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.1260 |
| Center to Cutting Edge (Decimal Inch) | 0.1260 |
| Insert Thickness (Inch) | 5/64 |
| Insert Inscribed Circle (Inch) | 3/16 |
| Rake Angle | 0 |
| Coolant Hole Diameter (Decimal Inch) | 0.0400 |
| Complete Insert Compatibility | WP.. 1.51.21 |
| Toolholder Material | Carbide |
