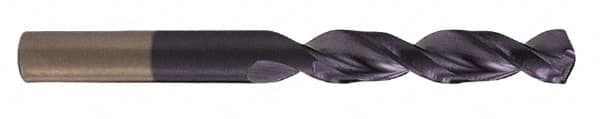

Screw Machine Length Drill Bit: 0.5469″ Dia, 135 °, Cobalt TiCN Finish, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 2175N
Item #: 75910950
Brand: Cleveland
Model #: C15281
Product Specifications
| Drill Bit Size (Inch) | 35/64 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | TiCN |
| Drill Point Angle | 135 |
| Flute Type | Parabolic |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.5469 |
| Drill Bit Size (Decimal Inch) | 0.5469 |
| Overall Length (mm) | 101.60 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Series | 2175N |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0012 in |
| Flute Length (Decimal Inch) | 2.5000 |
| Flute Length (Inch) | 2-1/2 |
| Flute Length (mm) | 63.50 |
| Drill Bit Size Range (Decimal Inch) | 0.5000 to 0.6000 |
| Specification Designation | ANSI |
| Material Grade | M42 |
