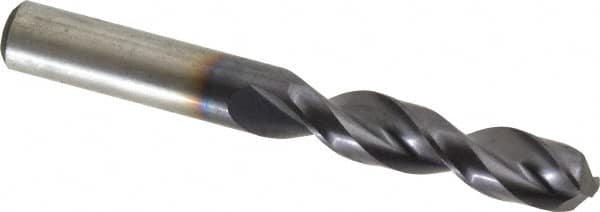

Screw Machine Length Drill Bit: 0.413″ Dia, 135 °, Cobalt TiAlN Finish, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 2175A
Item #: 75910638
Brand: Cleveland
Model #: C15155
Product Specifications
| Drill Bit Size (Letter) | Z |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 135 |
| Flute Type | Parabolic |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.4130 |
| Drill Bit Size (Decimal Inch) | 0.4130 |
| Overall Length (Decimal Inch) | 3.3750 |
| Overall Length (Inch) | 3-3/8 |
| Series | 2175A |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0010 in |
| Flute Length (Decimal Inch) | 2.0000 |
| Flute Length (Inch) | 2 |
| Flute Length (mm) | 50.80 |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Specification Designation | ANSI |
| Material Grade | M42 |
