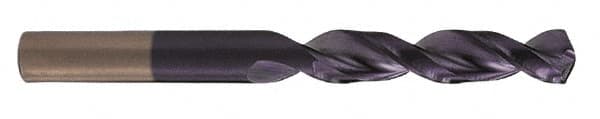

Cleveland - #35 135° Parabolic Flute Cobalt Screw Machine Drill Bit - TiN Finish, Right Hand Cut, 7/8" Flute Length, 1-7/8" OAL, Split Point, Straight Shank
Item #: 75906248
Brand: Cleveland
Model #: C14397
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Parabolic flutes have a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.1100 |
| Drill Bit Size (Wire) | #35 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 7/8 |
| Overall Length (Inch) | 1-7/8 |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.1100 |
| Specification Designation | ANSI |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0005 |
| Web Thinning | Web-Thinned |
| Material Grade | M42 |
| Series/List | 2175T |
