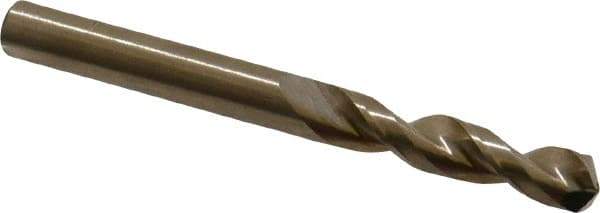

Cleveland - 0.257" 135° Parabolic Flute Cobalt Screw Machine Drill Bit - Oxide/Gold Finish, Right Hand Cut, 1-7/16" Flute Length, 2-5/8" OAL, Split Point, Straight Shank
Item #: 75905257
Brand: Cleveland
Model #: C14286
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide/Gold provides a polished finish and prevents chip building, galling and welding on a workpiece. It is commonly used in several applications on low carbons, stainless steel and iron based ferrous metals.
Parabolic flutes have a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2570 |
| Drill Bit Size (Letter) | F |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Oxide/Gold |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 1-7/16 |
| Overall Length (Inch) | 2-5/8 |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.2570 |
| Specification Designation | ANSI |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0010 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Heavy Duty |
| Material Grade | M42 |
| Series/List | 2175 |
