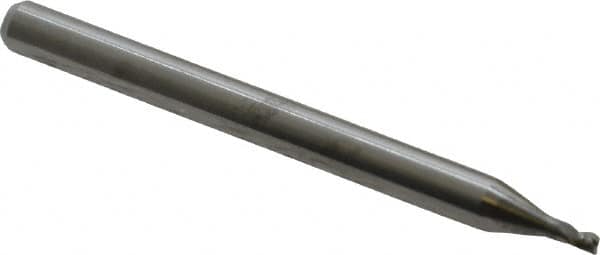

Kyocera - 3/64", 1/16" LOC, 1/8" Shank Diam, 1-1/2" OAL, 4 Flute, Solid Carbide Square End Mill - Single End, Uncoated, 30° Helix, Centercutting, Series 1820
Item #: 75862581
Brand: Kyocera
Model #: 1820-0469.070
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 3/64 |
| Mill Diameter (Decimal Inch) | 0.0469 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 1/16 |
| Length of Cut (Decimal Inch) | 0.0625 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 1/8 |
| Single or Double End | Single |
| Overall Length (Inch) | 1-1/2 |
| Center Cutting | Center Cutting |
| Helix Angle | 30.00 |
| Length Type | Stub |
| Series/List | 1820 |
