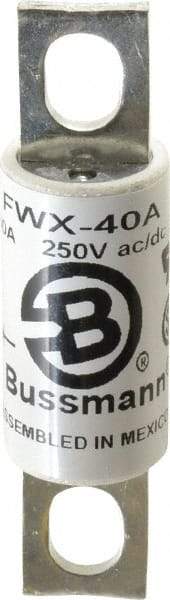

Cooper Bussmann - 250 VAC/VDC, 40 Amp, Fast-Acting Semiconductor/High Speed Fuse - Stud Mount Mount, 3-3/16" OAL, 200 (RMS), 50 at DC kA Rating, 0.81" Diam
Item #: 75784504
Brand: Cooper Bussmann
Model #: FWX-40A
Exact Tooling IR#: 04
Features and Benefits
Semiconductor/high speed fuses are designed to protect devices from overcurrents. They are quick reacting, reduce the need of other components to have high short-circuit current ratings.
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | Semiconductor/High Speed |
| Amperage | 40 |
| Voltage | 250 VAC/VDC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Flush End |
| Overall Length (Inch) | 3-3/16 |
| Overall Length (Decimal Inch) | 3.1880 |
| Overall Diameter (Decimal Inch) | 0.8100 |
| Mounting Type | Stud Mount |
| Interrupting Rating (kA) | 200 (RMS); 50 @ DC |
| Standards Met | CE Certified; CSA 53787; CSA Class 1422-30 Component Accepted; UL Recognized Guide JFHR2 File E56412 |
