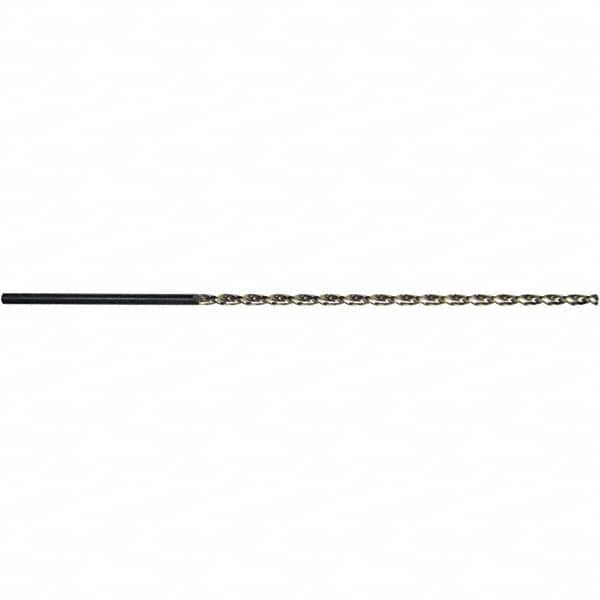

Extra Length Drill Bit: 0.3438″ Dia, 130 °, High Speed Steel Uncoated, 11.0236″ Flute Length, Parabolic Flute, Straight-Cylindrical Shank, Series 504
Item #: 75776211
Brand: Guhring
Model #: 9005040087300
Product Specifications
| Overall Length (mm) | 410.00 |
| Flute Length (mm) | 280.00 |
| Tool Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Drill Point Angle | 130 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Flute Type | Parabolic |
| Series | 504 |
| Point Type | Chisel Point |
| Cutting Direction | Right Hand |
| Tool Application | Deep Hole Drilling |
| Drill Bit Diameter Tolerance | +0.000 to -0.022 mm |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Primary Workpiece Material | Aluminum |
| Primary Workpiece Material Code | P; K; N |
| Standards | DIN 1869 |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.3438 |
| Shank Diameter (Decimal Inch) | 0.3438 |
| Shank Diameter (mm) | 8.73 |
| Shank Diameter (Decimal Inch) | 11/32 |
| Shank Length (Decimal Inch) | 5.1181 |
| Shank Length (mm) | 130.00 |
| Flute Length (Decimal Inch) | 11.0236 |
| Flute By Diameter Ratio | 30xD |
| Maximum Drilling Depth (Decimal Inch) | 11.0236 |
| Maximum Drilling Depth (mm) | 280.00 |
| Material Grade | M2 |
| Specification Designation | DIN |
