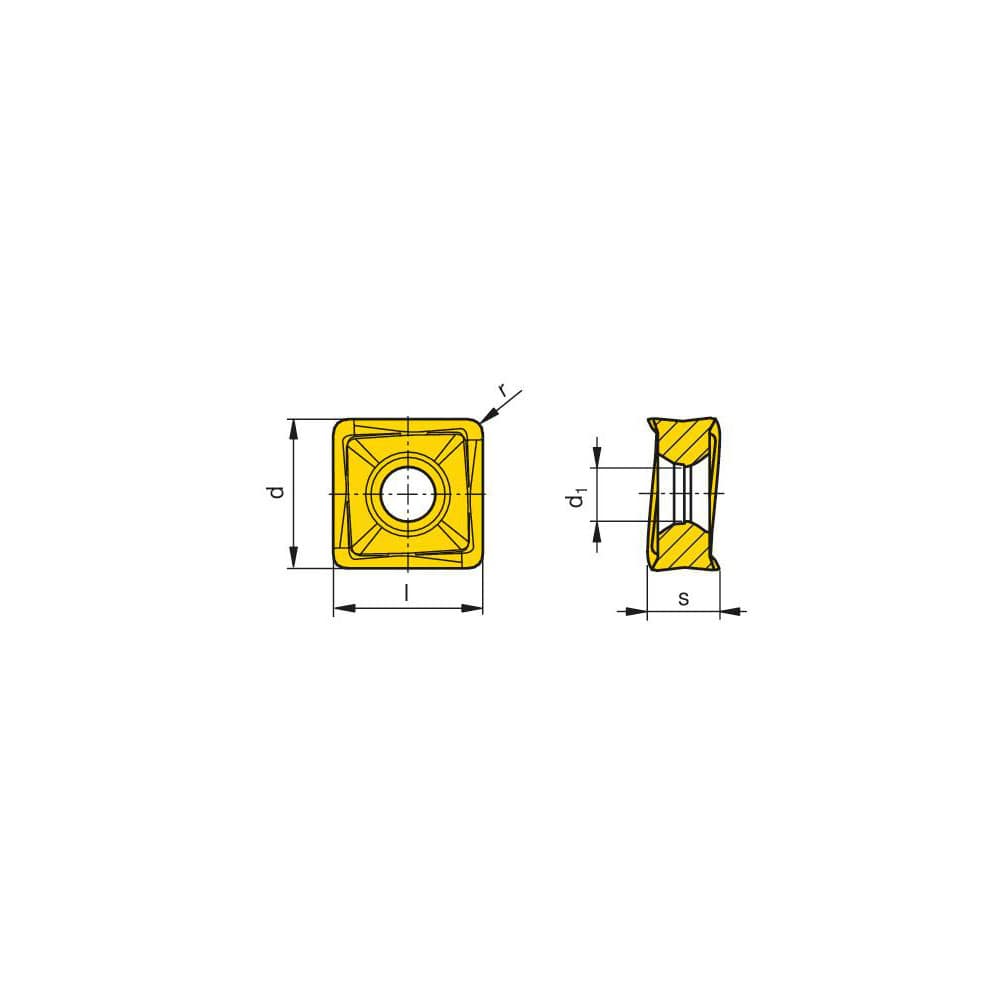

Milling Insert: SNHU 09T312SR-M50 CTPP235, CTPP235, Solid Carbide N/A Finish,
Item #: 75766444
Brand: Ceratizit
Model #: 5112011200
Product Specifications
| Insert Style | SNHU |
| Insert Size Code | 09T3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPP235 |
| Inscribed Circle (Decimal Inch) | 0.3602 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Insert Hand | Right Hand |
| Relief Angle | 6.50 |
| Series | SNHU |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1516 |
| Maximum Depth of Cut (Decimal Inch) | 0.1801 |
| Number Of Cutting Edges | 8 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3602 |
| Insert Shape | Square |
| Rake | Negative |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Ansi Code | SNHU 09T312SR-M50 CTPP235 |
| Iso Code | SNHU 09T312SR-M50 CTPP235 |
| Chip Breaker | M50 |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1457 |
