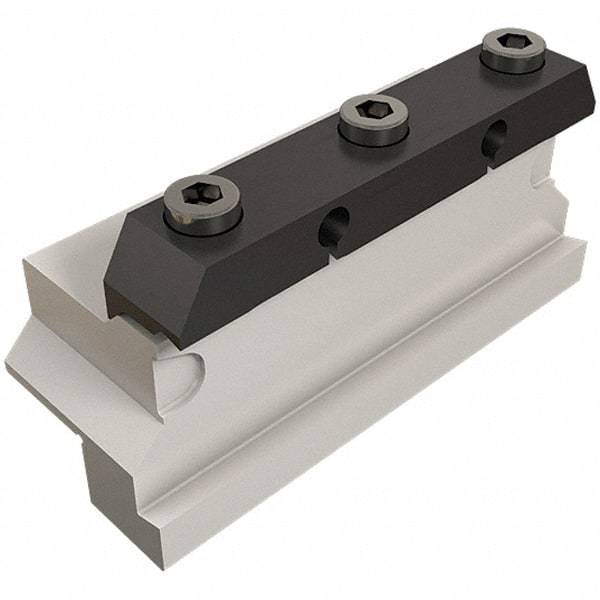

Iscar - Tool Block Style SGTBU, 32mm Blade Height, 110mm OAL, 54mm OAH, Indexable Cutoff Blade Tool Block - 32mm Shank Height, 29mm Shank Width, Through Coolant, Series Tool Blocks
Item #: 75473686
Brand: Iscar
Model #: 2300773
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tool Block Style | SGTBU |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Overall Height (mm) | 54.00 |
| Overall Height (Decimal Inch) | 2.1260 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Shank Width (mm) | 29.00 |
| Shank Width (Decimal Inch) | 1.1417 |
| Through Coolant | Through Coolant |
| Reversible | No |
| Modular | No |
| Series | Tool Blocks |
| Overall Width (mm) | 48.00 |
| Overall Width (Decimal Inch) | 1.8898 |
| Complete Blade Compatibility | CGHL 32-P8DG; CGHN 32-3D; CGHN 32-4D; CGHN 32-5D; CGHN 32-6D; CGHR 32-P8DG; DGFH 32-1.4; DGFH 32-2; DGFH 32-3; DGFH 32-4; DGFH 32C-3; SGFFA 25-L-2; SGFFA 25-R-2; SGFFA 30-L-2; SGFFA 30-R-2; SGFFA 35-L-2; SGFFH 35-L-2; SGFFH 35-R-2; SGFFH 45-L-2; SGFFH 45- |
| Head Length/Projection (mm) | 110.00 |
| Head Length/Projection (Decimal Inch) | 4.3307 |
| Complete Insert Compatibility | GIF 3.48-0.20; GIF 3.56-0.20; GIF 3.74-0.20; GIF 3.98-0.20; GIF 4.00E-0.80; GIF 4.00E-0.60; GIF 4.00E-0.40; GIM 3; GIM 3.2; GIM 3C; GIM 3J; GIM 4; GIM 4C; GIM 4J |
