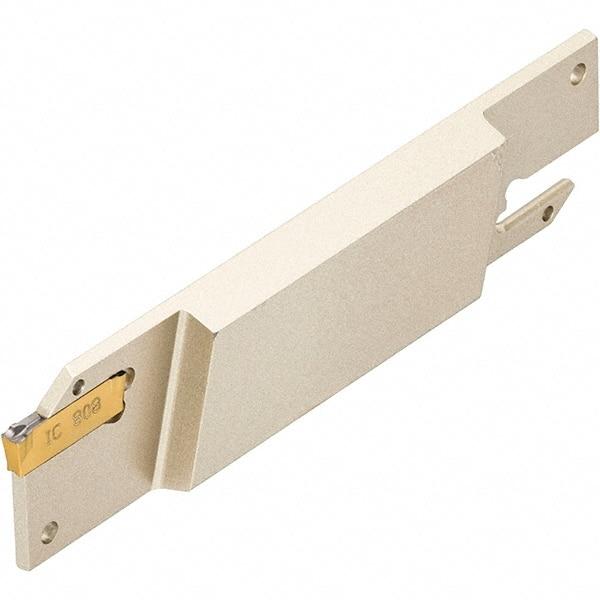

Iscar - 4" Groove Width, Left Hand Cut, DGFH Indexable Grooving Blade - DGN-UT/UA, DGN/DGNC/DGNM-C, DGN/DGNM-J/JS/JT, DGR/L-C DGRC/LC-C, DGR/L-J/JS Insert Style, Series Do-Grip
Item #: 75262980
Brand: Iscar
Model #: 2301341
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 4.00 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Blade Style | DGFH |
| Series | Do-Grip |
| Maximum Workpiece Diameter (mm) | 80.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 3.1496 |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 10.00 |
| Blade Width (Decimal Inch) | 0.3937 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Insert Style | DGN-UT/UA; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR/L-C DGRC/LC-C; DGR/L-J/JS |
| Complete Insert Compatibility | DGL 4003C-4D; DGL 4003J-4D; DGLC 4003C-4D; DGN 4003C; DGN 4003J; DGN 4003JT; DGN 4003UA; DGN 4003UT; DGNC 4003C; DGR 4000JS-15D; DGR 4003C-4D; DGR 4003J-4D; DGRC 4003C-4D |
