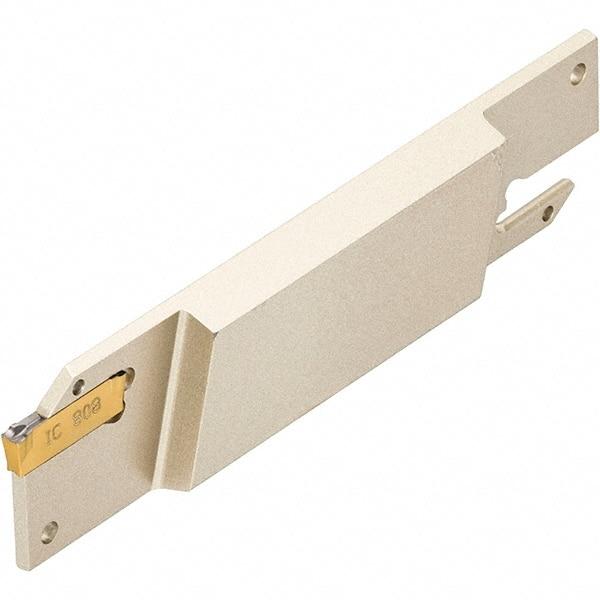

Iscar - 1.9 to 2.5mm Groove Width, Right Hand Cut, DGFH Indexable Grooving Blade - Multiple Insert Styles, Series Do-Grip
Item #: 75262931
Brand: Iscar
Model #: 2301333
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 1.90 |
| Minimum Groove Width (Decimal Inch) | 0.0748 |
| Blade Style | DGFH |
| Series | Do-Grip |
| Maximum Workpiece Diameter (mm) | 42.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.6535 |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (mm) | 8.00 |
| Blade Width (Decimal Inch) | 0.3150 |
| Maximum Groove Width (mm) | 2.50 |
| Maximum Groove Width (Decimal Inch) | 0.0984 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Insert Style | DGN-LF/LFT; DGN-P; DGN-UT/UA; DGN-WP; DGN-Z; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR-P; DGR-WP; DGR-Z/ZS; DGR/L-C DGRC/LC-C; DGR/L-J/JS |
| Complete Insert Compatibility | DGL 2200JS-15D; DGL 2200JS-6D; DGL 2202J-6D; DGN 2202LF; DGR 1900WP-12D; DGR 1900WP-5D; DGR 2000P-15D; DGR 2000P-6D; DGR 2000ZS-15D; DGR 2000ZS-6D; DGR 2002Z-15D; DGR 2002Z-6D; DGR 2200JS-15D; DGR 2200JS-6D; DGR 2400WP-12D; DGR 2400WP-5D |
