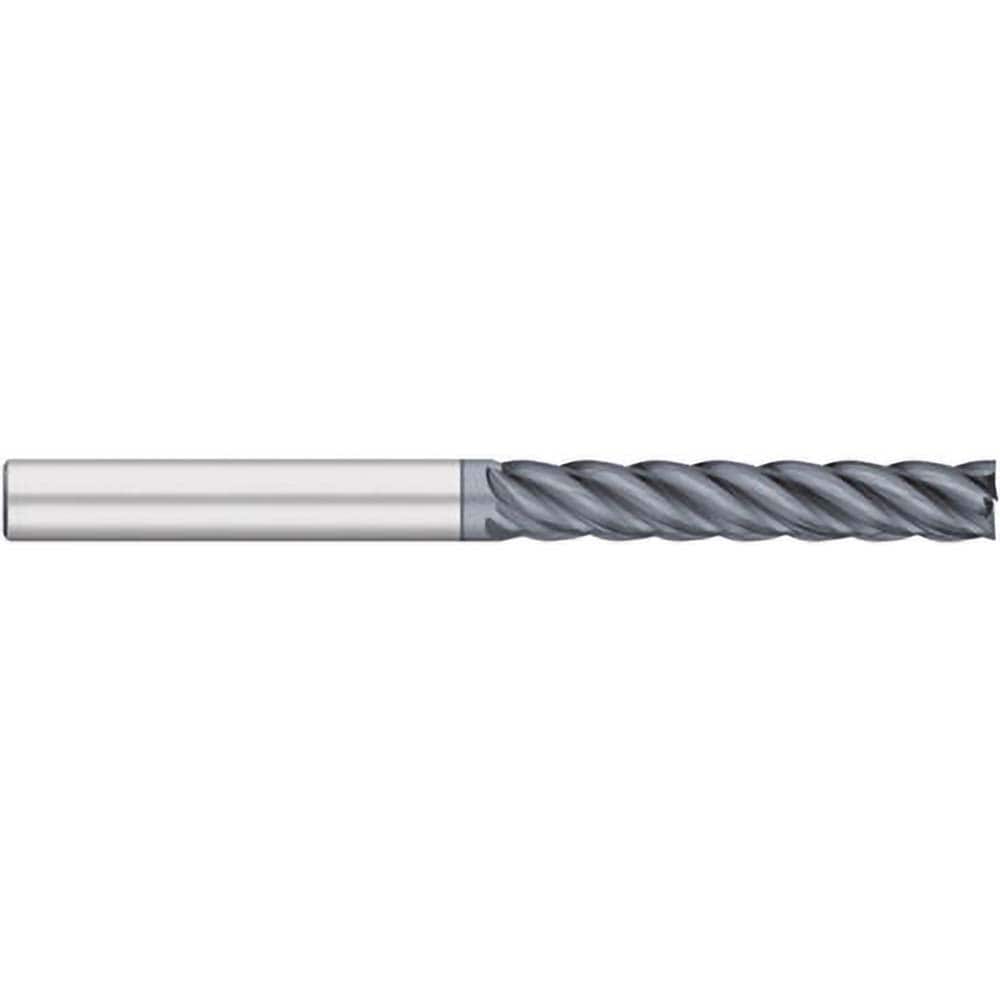

Square End Mill: 1/4" Dia, 1-1/2" LOC, 5 Flute, Solid Carbide
Item #: 19522812
Brand: Titan USA
Model #: TC25942
Product Specifications
| Mill Diameter (Decimal Inch) | 0.2500 |
| Mill Diameter (Inch) | 1/4 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.5000 |
| Length of Cut (Inch) | 1-1/2 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Single Or Double End | Single |
| Coating/Finish Family | AlCrN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 38 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Coating/Finish | ALCRO-MAX |
| Variable Helix | No |
| Variable Index | Yes |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Length Of Cut Range (Decimal Inch) | 1.5000 - 2.0000 |
| Series | VI-PRO Variable Index End Mills - 5 Flute - Square |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
