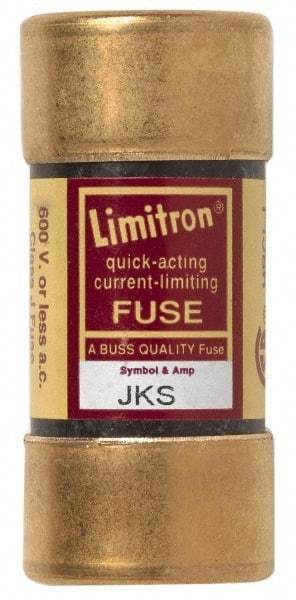

Cooper Bussmann - 600 VAC, 1 Amp, Fast-Acting General Purpose Fuse - Fuse Holder Mount, 2-1/4" OAL, 200 (RMS) kA Rating, 13/16" Diam
Item #: 74975483
Brand: Cooper Bussmann
Model #: JKS-1
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | J |
| Amperage | 1 |
| Voltage | 600 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 57.20 |
| Overall Length (Inch) | 2-1/4 |
| Overall Length (Decimal Inch) | 2.2500 |
| Overall Diameter (mm) | 20.60 |
| Overall Diameter (Inch) | 13/16 |
| Overall Diameter (Decimal Inch) | 0.8100 |
| Mounting Type | Fuse Holder |
| Interrupting Rating (kA) | 200 (RMS) |
| Standards Met | CE Certified; CSA C22.2 No. 248.8 Class 1422-02 File 53787 Certified; UL Listed 248-8 Class J Guide JDDZ File E4273 |
