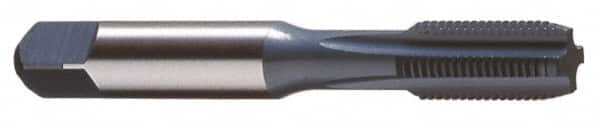

Cleveland - 7/16-14 UNC 4 Flute Nitride/Oxide Finish Powdered Metal Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 3-5/32" OAL, 1.438" Thread Length, H5 Limit, Oversize
Item #: 74959974
Brand: Cleveland
Model #: C27658
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Powdered metal cobalt high speed steel provides the highest performance of the powdered metals. It is used at extremely high temperatures and cutting speeds on highly abrasive materials.
Nitride/Oxide is used to prevent galling, welding and loading. It is commonly used on low carbon steels, stainless steels and nonferrous metals.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (Inch) | 7/16-14 |
| Thread Limit | H5 |
| Number of Flutes | 4 |
| Chamfer | Modified Bottoming |
| Material | Powdered Metal |
| Finish/Coating | Nitride/Oxide |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Inch) | 3-5/32 |
| Oversize | No |
| Series/List | SD CI1000 |
| Thread Length (Decimal Inch) | 1.4380 |
| Material Application | Cast Iron; Hardened Steel |
