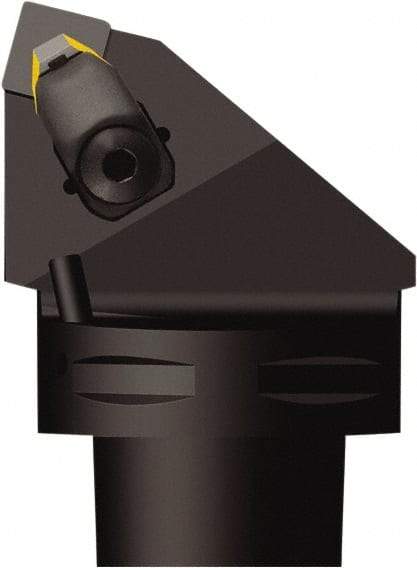

Seco - Left Hand Cut, Size C6, SNMN 432 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 35.05mm Ctr to Cutting Edge, 65.02mm Head Length, Series Seco-Capto
Item #: 74870403
Brand: Seco
Model #: 42795
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | Seco-Capto |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 65.02 |
| Head Length/Projection (Decimal Inch) | 2.5600 |
| Insert Style | SNMN 432 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 35.05 |
| Center to Cutting Edge (Decimal Inch) | 1.3800 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Axial Rake Angle | -6 |
| Neck Diameter (mm) | 62.99 |
| Neck Diameter (Decimal Inch) | 2.4800 |
| Complete Insert Compatibility | SNMN 432S-WZ-85 |
