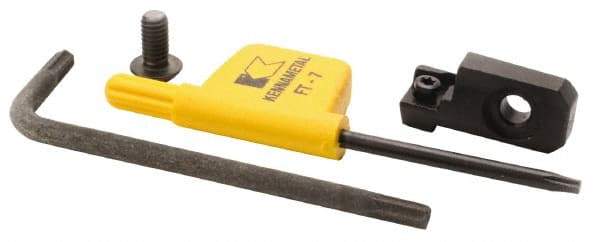

Kennametal - Series Romicron, Right Hand Cut, 13800mm Min Bore Diam, Boring Cartridge - 12.2mm Back of Bar to Cutting Edge, CP... Insert, 38.7mm OAL, 0° Lead Angle
Item #: 74838095
Brand: Kennametal
Model #: 1099172
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Romicron |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 5.4300 |
| Minimum Bore Diameter (mm) | 138.0000 |
| Insert Style | CP... |
| Boring Head Compatibility | SVS6B; SVS7B; SVS8B |
| Cartridge Size | 2D |
| Overall Length (mm) | 38.70 |
| Overall Length (Decimal Inch) | 1.5236 |
| Lead Angle | 0 |
| Back of Bar to Cutting Edge (mm) | 12.20 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4803 |
| Complete Insert Compatibility | CP.. 0602..; CP.. 21.5... |
