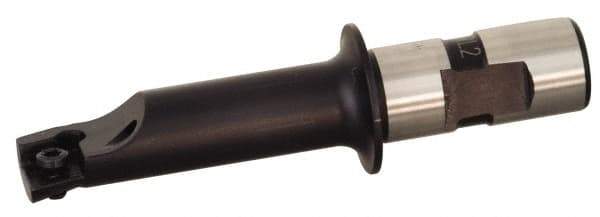

Kennametal - 13.5mm Min Bore Diam, 65mm OAL, 10mm Shank Diam, SVUBB1 Indexable Boring Bar - 39mm Max Bore Depth, CP.. Insert
Item #: 74837980
Brand: Kennametal
Model #: 2202451
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | SVUBB1 |
| Series | Romicron |
| Minimum Bore Diameter (mm) | 13.50 |
| Minimum Bore Diameter (Decimal Inch) | 0.5315 |
| Maximum Bore Depth (mm) | 39.00 |
| Maximum Bore Depth (Decimal Inch) | 1.5354 |
| Overall Length (mm) | 65.00 |
| Overall Length (Decimal Inch) | 2.5600 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3940 |
| Insert Compatibility | CP.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Maximum Bore Diameter (mm) | 16.50 |
| Maximum Bore Diameter (Decimal Inch) | 0.6496 |
| Complete Insert Compatibility | CP.. 0602..; CP.. 21.5.. |
