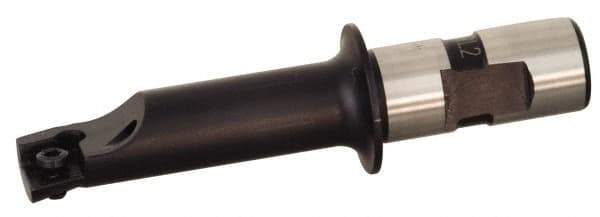

Kennametal - 8.6mm Min Bore Diam, 68mm OAL, 16mm Shank Diam, SVUBB2 Indexable Boring Bar - 26mm Max Bore Depth, CP.. Insert, Screw Holding Method
Item #: 74837865
Brand: Kennametal
Model #: 1522063
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | SVUBB2 |
| Series | Romicron |
| Minimum Bore Diameter (mm) | 8.60 |
| Minimum Bore Diameter (Decimal Inch) | 0.3386 |
| Maximum Bore Depth (mm) | 26.00 |
| Maximum Bore Depth (Decimal Inch) | 1.0236 |
| Overall Length (mm) | 68.00 |
| Overall Length (Decimal Inch) | 2.6772 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Compatibility | CP.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Maximum Bore Diameter (mm) | 12.00 |
| Maximum Bore Diameter (Decimal Inch) | 0.4724 |
| Complete Insert Compatibility | CP.. 0602..; CP.. 21.5.. |
