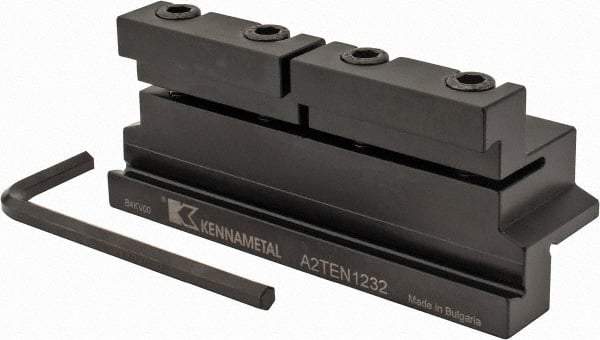

Kennametal - Tool Block Style A2TEN, 32mm Blade Height, 110mm OAL, 48mm OAH, Indexable Cutoff Blade Tool Block - 3/4" Shank Height, 3/4" Shank Width, Reversible, Series A2 Cut-Off
Item #: 74837543
Brand: Kennametal
Model #: 3015436
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tool Block Style | A2TEN |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3300 |
| Overall Height (mm) | 48.00 |
| Overall Height (Decimal Inch) | 1.8900 |
| Shank Height (mm) | 19.05 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width (mm) | 19.05 |
| Shank Width (Inch) | 3/4 |
| Shank Width (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Reversible | Yes |
| Series | A2 Cut-Off |
| Overall Width (mm) | 35.05 |
| Overall Width (Decimal Inch) | 1.3800 |
| Shoulder Height (Decimal Inch) | 0.5500 |
| Insert Cutting Direction | Neutral |
