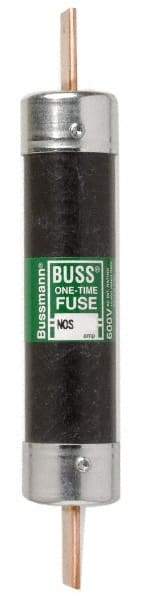

Cooper Bussmann - 600 VAC, 600 Amp, Fast-Acting General Purpose Fuse - Bolt-on Mount, 13-3/8" OAL, 10 (RMS Symmetrical) kA Rating, 3-1/8" Diam
Item #: 74740887
Brand: Cooper Bussmann
Model #: NOS-600
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | H |
| Amperage | 600 |
| Voltage | 600 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 339.70 |
| Overall Length (Inch) | 13-3/8 |
| Overall Length (Decimal Inch) | 13.3800 |
| Overall Diameter (mm) | 79.50 |
| Overall Diameter (Inch) | 3-1/8 |
| Overall Diameter (Decimal Inch) | 3.1300 |
| Mounting Type | Bolt-on |
| Interrupting Rating (kA) | 10 (RMS Symmetrical) |
| Standards Met | CE Certified; CSA Class 1421-01 File 53787 Certified; UL 248-6; UL Guide JDDZ File E4273; UL Listed |
