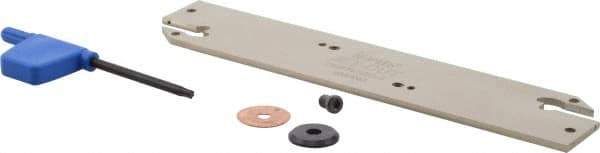

Iscar - 3 to 3.18mm Groove Width, Neutral Cut, DGFH Indexable Grooving Blade - Multiple Insert Styles, Series Do-Grip & Heli-Grip
Item #: 74447541
Brand: Iscar
Model #: 2301745
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Minimum Groove Width (mm) | 3.00 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Blade Style | DGFH |
| Series | Do-Grip; Heli-Grip |
| Maximum Workpiece Diameter (mm) | 39.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.5354 |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2600 |
| Maximum Groove Width (mm) | 3.18 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Style | DGN-P; DGN-UT/UA; DGN-W; DGN-WP; DGN-Z; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR-WP; DGR/L-C DGRC/LC-C; DGR/L-J/JS; DGR/L-P; DGR/L-Z/ZS; GRIP; GRIP (Full Radius) |
| Complete Insert Compatibility | DG.0.3.. |
