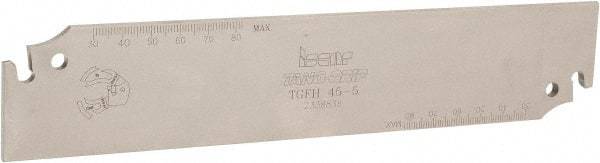

Iscar - 1.7717" Blade Height, 4mm Blade Width, 225mm OAL, Neutral Cut, Single End Indexable Cut-Off Blade - TGFH Blade, Tang-Grip Series
Item #: 74370297
Brand: Iscar
Model #: 2302177
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Neutral |
| Blade Height (mm) | 45.00 |
| Blade Height (Decimal Inch) | 1.7717 |
| Blade Width (mm) | 4.00 |
| Blade Overall Length (mm) | 225.00 |
| Blade Style | TGFH |
| Insert Style | TAG N-C/W/M; TAG N-J/JS/JT; TAG N-UT; TAG R/L-C; TAG R/L-J/JS |
| Insert Width (mm) | 4.70 |
| Insert Width (Decimal Inch) | 0.1850 |
| Series | Tang-Grip |
| Insert Seat Size | 4 |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 6.3000 |
| Cutting Height (mm) | 38.10 |
| Cutting Height (Decimal Inch) | 1.5000 |
| Minimum Insert Width (mm) | 4.70 |
| Minimum Insert Width (Decimal Inch) | 0.1850 |
| Maximum Insert Width (mm) | 5.50 |
| Maximum Insert Width (Decimal Inch) | 0.2165 |
| Complete Insert Compatibility | TAG L5C-4D; TAG L5J-4D; TAG N4.8C; TAG N5C; TAG N5J; TAG N5JT; TAG N5UT; TAG R5C-4D; TAG R5J-4D |
| Complete Tool Block/Toolholder Style Compatibility | C..TBK..,HS..TBK..,IM..TBK..,SGT.. |
