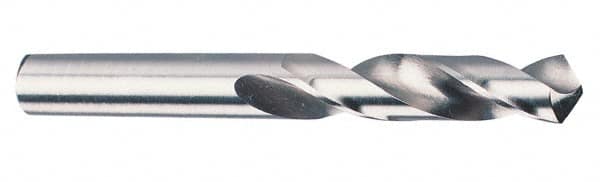

Cleveland - 0.2812" 135° Spiral Flute High Speed Steel Screw Machine Drill Bit - Bright Finish, Right Hand Cut, 1-1/2" Flute Length, 2-11/16" OAL, Split Point, Straight Shank
Item #: 74332180
Brand: Cleveland
Model #: C70289
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2812 |
| Drill Bit Size (Letter) | K |
| Drill Point Angle | 135 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 1-1/2 |
| Flute Length (mm) | 38.10 |
| Flute Length (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 2-11/16 |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.2812 |
| Specification Designation | NAS |
| Spiral Type | Regular Spiral |
| Shank Length (Inch) | 1-3/16 |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0010 |
| Specification Number | NAS 907 Type C |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Heavy Duty |
| Series/List | 2330 |
