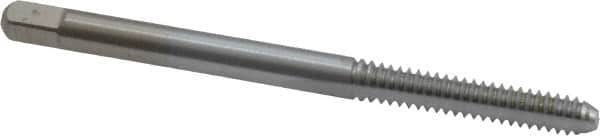

Made in USA - #6-32 UNC 3B 2 Flute Chrome Finish High Speed Steel Straight Flute Standard Hand Tap - Bottoming, Right Hand Thread, 2" OAL, 11/16" Thread Length, H2 Limit, Oversize
Item #: 74326331
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | #6-32 |
| Class of Fit | 3B |
| Thread Limit | H2 |
| Number of Flutes | 2 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | Chrome |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Inch) | 2 |
| Oversize | No |
| Thread Length (Inch) | 11/16 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Length (Inch) | 3/16 |
| Square Size (Decimal Inch) | 0.1100 |
| Material Application | Ferrous Metals; Non-Ferrous Metals; Non-Metallic Materials |
