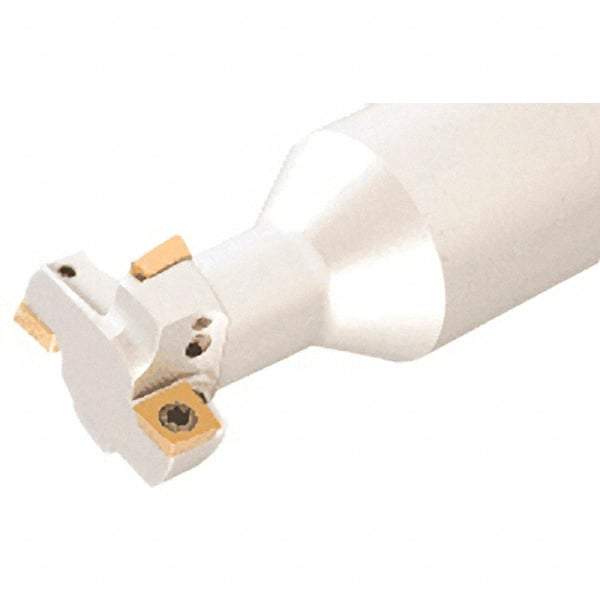

Iscar - 1.9094" Cutting Diam x 1-1/16" Cutting Width, 4 Cutter Inserts, 1.2598" Shank Diam, Indexable T-Slot Cutter - Insert Style ADKT, 5.1181" OAL
Item #: 74164872
Brand: Iscar
Model #: 3101035
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.9094 |
| Cutting Width (Decimal Inch) | 1.0630 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Toolholder Style | ETS |
| Number of Cutter Inserts | 4 |
| Insert Style | ADKT |
| Neck Diameter (Decimal Inch) | 1.0236 |
| Overall Length (Decimal Inch) | 5.1181 |
| Maximum Reach (Decimal Inch) | 2.0197 |
| Weldon Flat | Yes |
| Complete Insert Compatibility | ADKT 1505PDL-HM; ADKT 1505PDR-HM |
