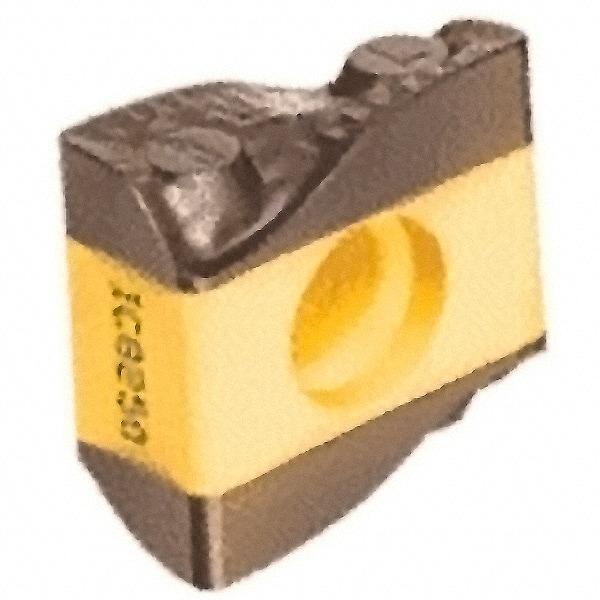

Iscar - LNMX110408 HT Grade IC428 Carbide Turning Insert - TiC/Al2O3 Finish, 90° Rectangle, 11.4mm Thick, 1/32" Corner Radius
Item #: 74152679
Brand: Iscar
Model #: 5506350
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNMX |
| Insert Size | 110408 |
| Material | Carbide |
| Length (mm) | 11.00 |
| Length (Decimal Inch) | 0.4330 |
| Thickness (Decimal Inch) | 0.4490 |
| Thickness (mm) | 11.40 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | IC428 |
| Coating | TiC/Al2O3 |
| Chip Breaker | HT |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 90 |
| Cutting Direction | Left Hand |
| Series | Heliturn |
| Maximum Depth of Cut (mm) | 5.00 |
| Insert Holding Method | Screw |
| Shape | Rectangle |
