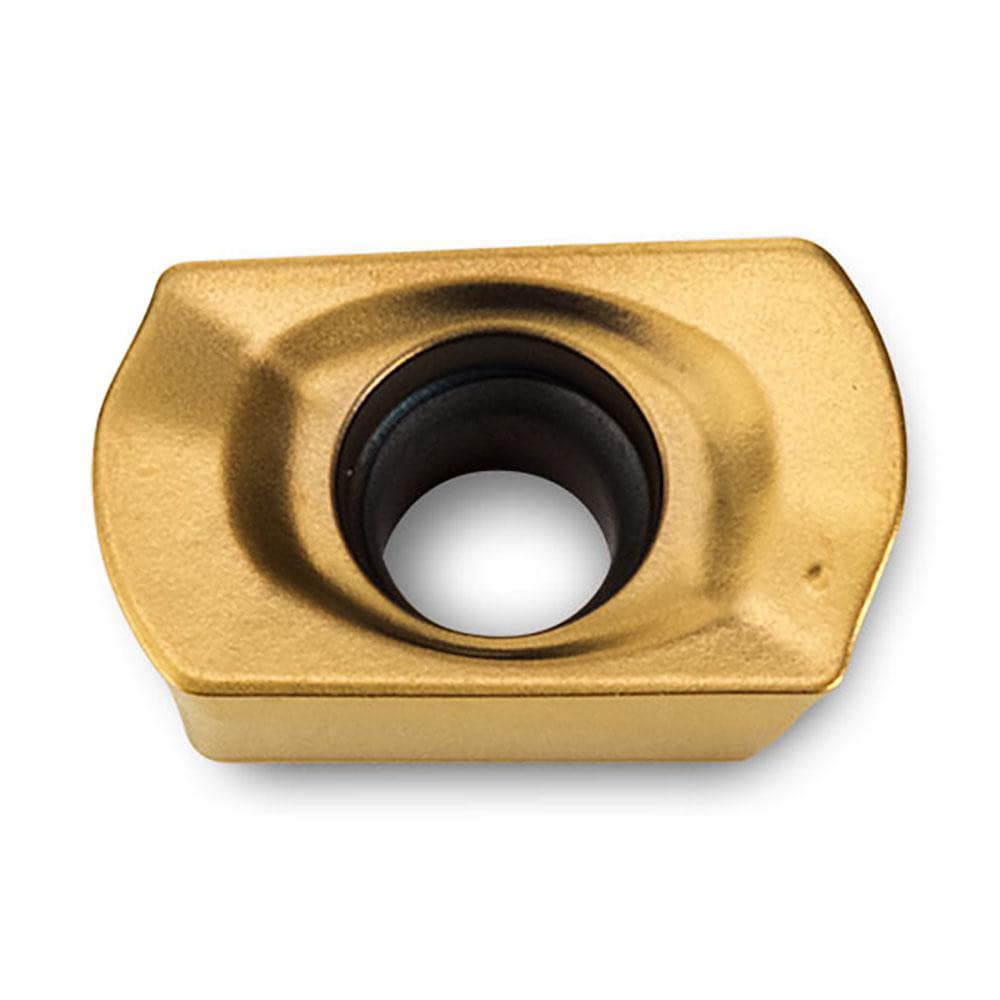

Milling Insert: UOMT0602TR IN2505 IN2505, Solid Carbide
Item #: 41011099
Brand: Ingersoll Cutting Tools
Model #: 5822004
Product Specifications
| Insert Style | UOMT |
| Insert Size | 06 |
| Insert Material | Solid Carbide |
| Insert Shape | Irregular |
| Manufacturer Grade | IN2505 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1040 |
| Coating/Finish | TiN; TiAlN |
| Insert Size Code | 0602 |
| Material Grade | Micrograin |
| Inscribed Circle (Decimal Inch) | 0.1620 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Inscribed Circle Range (Decimal Inch) | 0.1000 to 0.2000 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Right Hand |
| Series | UOMT |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.0190 |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Ansi Code | UOMT0602TR I IN2505 |
| Iso Code | UOMT0602TR IN2505 |
| Standards | ISO; ANSI |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | 5822004 |
| Cutter Series Compatibility | 12J1D; 2J1D |
| Chip Breaker | None |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Width (Decimal Inch - 4 Decimals) | 0.1620 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.2650 |
