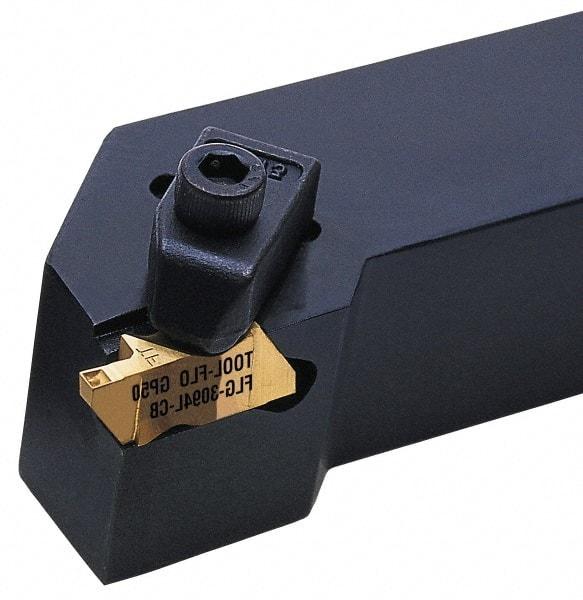

Tool-Flo - External Thread, Left Hand Cut, 5/8" Shank Width x 5/8" Shank Height Indexable Threading Toolholder - 4-1/2" OAL, FL 3L Insert Compatibility, FLAS Toolholder
Item #: 74096132
Brand: Tool-Flo
Model #: 92891016B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (Inch) | 5/8 |
| Shank Height (Inch) | 5/8 |
| Shank Height (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (Inch) | 4-1/2 |
| Insert Compatibility | FL 3L |
| Toolholder Style | FLAS |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6250 |
| Maximum Depth of Cut (Decimal Inch) | 1.2500 |
| Shank Length (Inch) | 3-1/4 |
| Shank Length (Decimal Inch) | 3.2500 |
