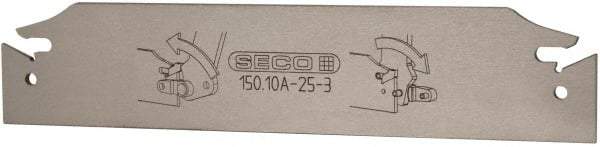

Seco - 0.984" Blade Height, 3/32" Blade Width, 5.91" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - 2" Max Depth of Cut, 150.10A Blade, 150.10 Series
Item #: 74064742
Brand: Seco
Model #: 33052
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (Decimal Inch) | 0.9840 |
| Blade Width (Decimal Inch) | 0.0940 |
| Blade Overall Length (Decimal Inch) | 5.9100 |
| Blade Style | 150.10A |
| Insert Width (Decimal Inch) | 0.1220 |
| Series | 150.10 |
| Insert Seat Size | 3 |
| Tool Block/Toolholder Style | 150.10-25 |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Inch) | 4 |
| Maximum Workpiece Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (Decimal Inch) | 2.0000 |
| Cutting Height (Decimal Inch) | 0.9840 |
| Insert Corner Radius (Decimal Inch) | 0.0080 |
| Complete Insert Compatibility | 150.10-3.. |
| Complete Tool Block/Toolholder Style Compatibility | 150.10-...-25 |
