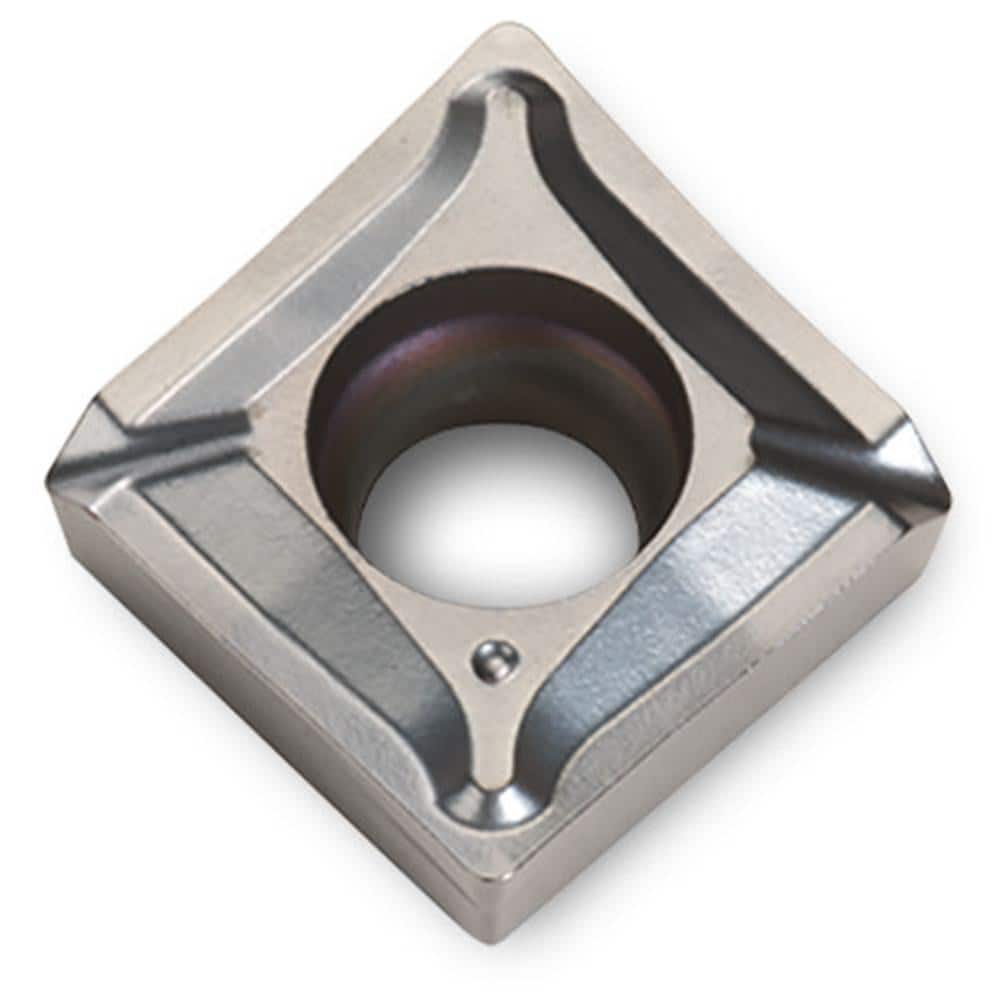

XCMT040104 Grade TT9030 Carbide Turning Insert
Item #: 73937435
Brand: Ingersoll Cutting Tools
Model #: 5516492
Product Specifications
| Insert Style | XCMT |
| Insert Shape Code | X |
| Insert Size Code | 040104 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT9030 |
| Inscribed Circle (Decimal Inch) | 0.1730 |
| Insert Holding Method | Screw |
| Insert Hand | Right Hand |
| Insert Thickness (Decimal Inch) | 0.0670 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 83.5 |
| Relief Angle | 7 |
| Series | XCMT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.1730 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | XCMT040104RTCTT9030 |
| Iso Code | XCMT040104RTC TT9030 |
| Standards | ISO |
| Chip Breaker | TC |
| Coating/Finish | TiAlN |
