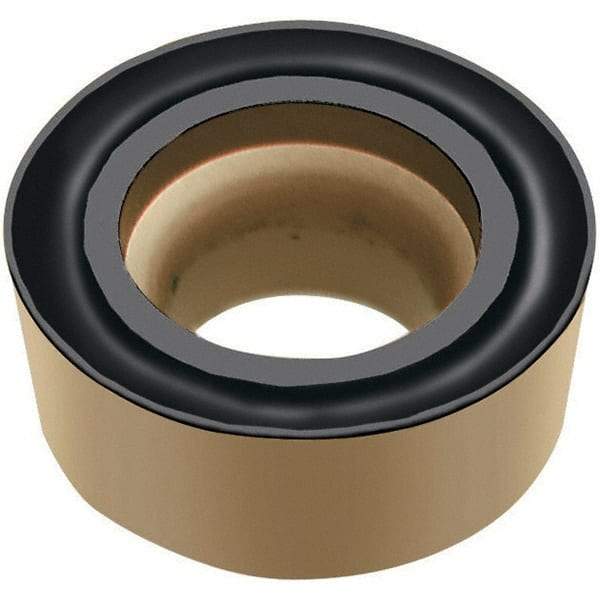

Walter - RCGT0602M0 PF5 Grade WSM30 Carbide Turning Insert - TiAlN/Al2O3/ZrCN Finish, Round, 6mm Inscr Circle, 3/32" Thick
Item #: 73803363
Brand: Walter
Model #: 5357517
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCGT |
| Insert Size | 0602M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 6.00 |
| Inscribed Circle (Decimal Inch) | 0.2362 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | WSM30 |
| Coating | TiAlN/Al2O3/ZrCN |
| Material Grade | M30/S30/P30 |
| Chip Breaker | PF5 |
| ISO Number | RCGT0602M0-PF5 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | RCGT0602M0-PF5 |
| Primary Workpiece Material | M; S |
| Secondary Workpiece Material | P |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Round |
