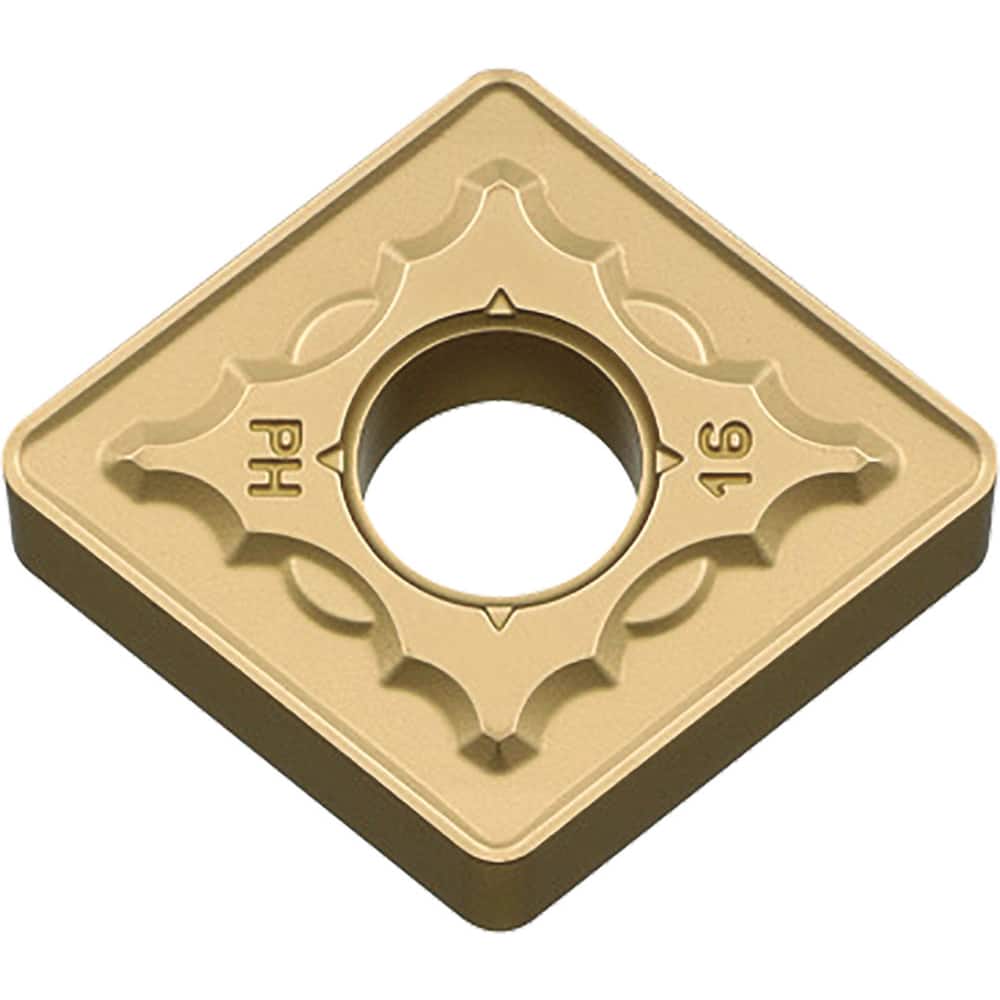

CNMG160612PH CA5515 Carbide Turning Insert TiCl2O3/TiN Finish, Neutral, 5/8″ Inscribed Circle, 0.0472″ Corner Radius, 1/4″ Thick, 80° Diamond, Series CA55
Item #: 73780249
Brand: Kyocera
Model #: TJQ01062
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 543 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Manufacturer Grade | CA5515 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 5/8 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | CA55 |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | P |
| Manufacturers Catalog Number | CNMG543PHCA5515 |
| Chip Breaker | G |
| Multi-Use Tool | Yes |
| Coating/Finish | TiCl2O3; TiN |
| Multi-Use Application | External Turning; Facing; Internal Facing; Boring |
