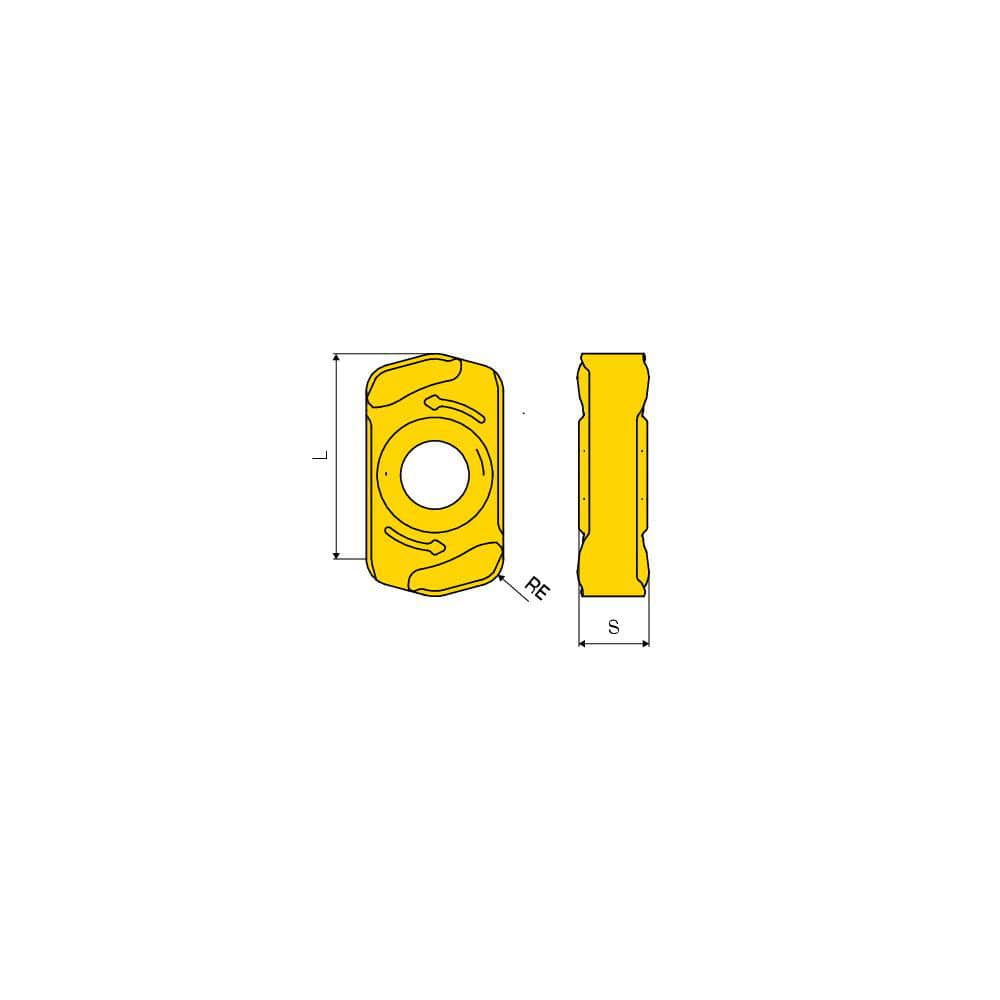

Milling Insert: LNKX 0925 ZSR-R50 CTPK221, CTPK221, Solid Carbide N/A Finish,
Item #: 73570483
Brand: Ceratizit
Model #: 5635327000
Product Specifications
| Insert Style | LNKX |
| Insert Size Code | 0925 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPK221 |
| Inscribed Circle (Decimal Inch) | 0.2098 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Insert Hand | Right Hand |
| Relief Angle | 7.00 |
| Series | LNKX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1051 |
| Maximum Depth of Cut (Decimal Inch) | 0.2494 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3543 |
| Insert Shape | Parallelogram |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | LNKX 0925 ZSR-R50 CTPK221 |
| Chip Breaker | R50 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.0984 |
