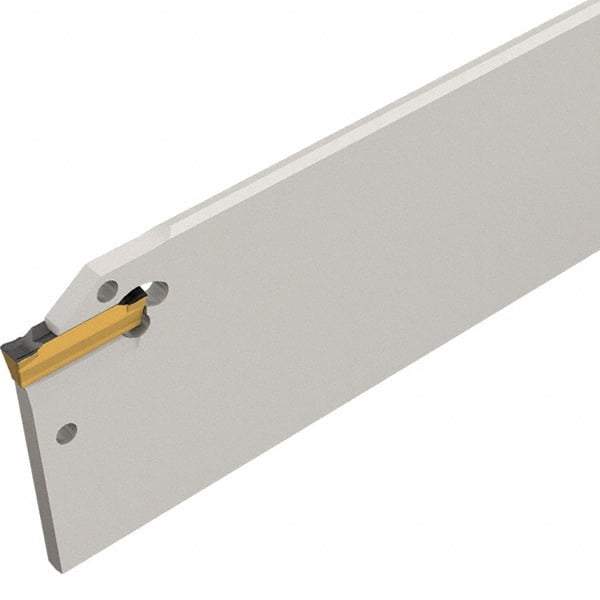

Iscar - 3 to 3.18mm Groove Width, Neutral Cut, DGFH Indexable Grooving Blade - DGN-P, DGN-UT/UA, DGN-Z, DGN/DGNC/DGNM-C, DGN/DGNM-J/JS/JT, DGR-Z/ZS, DGR/L-C DGRC/LC-C, DGR/L-J/JS Insert Style, Series Do-Grip & Heli-Grip
Item #: 73473597
Brand: Iscar
Model #: 2301928
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Minimum Groove Width (mm) | 3.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Blade Style | DGFH |
| Series | Do-Grip; Heli-Grip |
| Maximum Workpiece Diameter (mm) | 39.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.5354 |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (mm) | 2.40 |
| Blade Width (Decimal Inch) | 0.0945 |
| Maximum Groove Width (mm) | 3.18 |
| Maximum Groove Width (Decimal Inch) | 0.1252 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Insert Style | DGN-P; DGN-UT/UA; DGN-Z; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR-Z/ZS; DGR/L-C DGRC/LC-C; DGR/L-J/JS |
| Complete Insert Compatibility | DGL 3100JS-15D; DGL 3100JS-6D; DGL 3102J-15D; DGN 3000P; DGN 3002Z; DGN 3003UA; DGN 3003UT; DGR 3000ZS-15D; DGR 3000ZS-6D; DGR 3002Z-6D; DGR 3100JS-15D; DGR 3100JS-6D |
