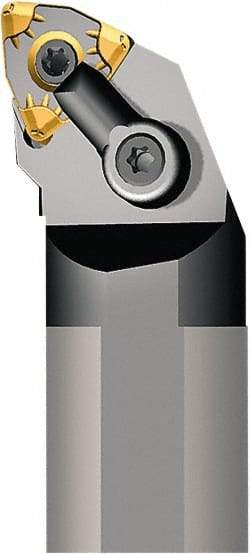

Seco - 32mm Min Bore Diam, 250mm OAL, 25mm Shank Diam, S-MWLN Indexable Boring Bar - 40mm Max Bore Depth, WN.. 0804.. Insert, Pin & Clamp Holding Method
Item #: 73418527
Brand: Seco
Model #: 02963
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-MWLN |
| Series | Multi-Option |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 40.00 |
| Maximum Bore Depth (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | WN.. 0804.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -5 |
| Complete Insert Compatibility | WNGA 080408S-01525-L1-C; WNGA 080408S-01525-L1-V; WNGA 080408S-01525-L1-WZ-C; WNGA 080408S-L0-C; WNGA 080408S-L0-WZ-C; WNGA 080412S-01525-L1-V; WNGA 080412S-01525-L1-V-WZ; WNMA 080408; WNMA 080412; WNMA 080416; WNMG 080404-FF2; WNMG 080404-M1; WNMG 080404 |
| Toolholder Material | Steel |
