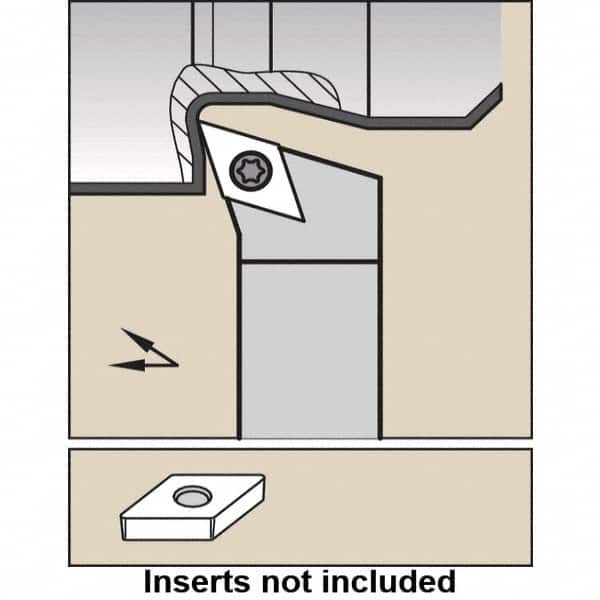

Kennametal - SDHC, Right Hand Cut, -17.5° Lead Angle, 25mm Shank Height x 25mm Shank Width, Neutral Rake Indexable Turning Toolholder - 150mm OAL, DC.. 11T3.. Insert Compatibility, Series Screw-On
Item #: 73413049
Brand: Kennametal
Model #: 1130381
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SDHC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Screw-On |
| Lead Angle | -17.5 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | DC.. 11T3.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 20.00 |
| Head Length (Decimal Inch) | 0.7874 |
| Insert Inscribed Circle (Inch) | 3/8 |
