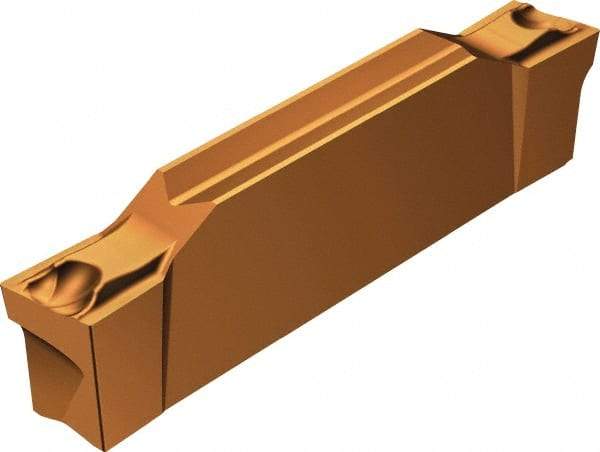

Sandvik Coromant - R123x2E CS 1125 Grade, 0.0787" Cutting Width, Carbide Cutoff Insert - 15° Right Hand Lead Angle, 0.0039" Cnr Rad, TiAlN Coated
Item #: 73367088
Brand: Sandvik Coromant
Model #: 5741472
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | R123x2 |
| Insert Size | E |
| Lead Angle Direction | Right Hand |
| Lead Angle | 15 |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Series | CoroCut 1-2 |
| Relief Angle | 7 |
| Chipbreaker | CS |
| Maximum Depth of Cut (mm) | 19.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.7638 |
| Full Radius | No |
| Multi-Use Application | Yes |
| Coating Process | PVD |
| Overall Length (mm) | 20.10 |
| Overall Length (Decimal Inch) | 0.7913 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Corner Radius (mm) | 0.10 |
| Insert Hand | Right Hand |
| Insert Holding Method | Clamp |
| Insert Seat Size | E |
| Overall Width (mm) | 2.00 |
| Overall Width (Decimal Inch) | 0.0787 |
| Manufacturers Catalog Number | R123E2-0200-1501-CS 1125 |
