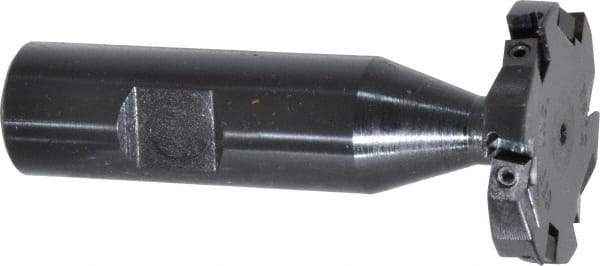

Cutting Tool Technologies - 1/4 Inch Cutting Width, 1.515 Inch Cutting Diameter, 6 Cutter Inserts, 3/4 Inch Shank Diameter, 1215 Insert Style, Indexable Keyseat Cutter - Inch Long Shank
Item #: 73156374
Brand: Cutting Tool Technologies
Model #: W812
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5150 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Cutting Width (Inch) | 1/4 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Cutter Inserts | 6 |
| Insert Style | 1215 |
| Staggered Tooth | Yes |
| Neck Diameter (Decimal Inch) | 0.3700 |
| Shank Length (Inch) | 2-7/8 |
| Neck Length (Inch) | 7/32 |
| Neck to Shank Taper Angle | 18 |
| Insert Holding Method | Wedge |
| Weldon Flat | Yes |
| Axial Rake Angle | 10 |
| Minimum Radial Rake Angle | 0 |
| Maximum Radial Rake Angle | 2 |
| Complete Insert Compatibility | 1215-007; 1215-015; 1215-030; 1215-060 |
