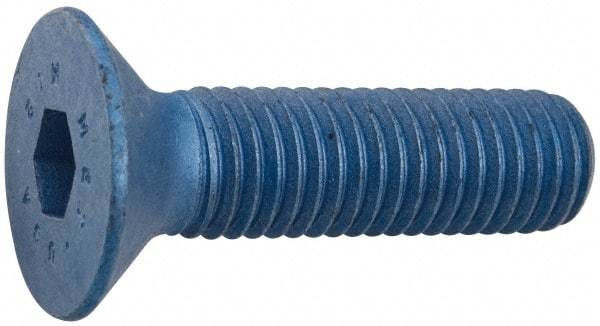

Metric Blue - M8x1.25 Metric Coarse Hex Socket Drive, 90° Flat Screw - Grade 12.9 Alloy Steel, Metric Blue Finish, Fully Threaded, 30mm OAL
Item #: 73142218
Brand: Metric Blue
Model #: UST184059
Exact Tooling IR#: 04
Features and Benefits
Hex socket drive types have a hex-shaped recess in the head and are driven with hex keys or hex socket bits. The driving surface is protected from external damage and provides six sides of contact surface for added torque.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| System of Measurement | Metric |
| Head Type | 90 Degree Flat |
| Drive Type | Hex Socket |
| Thread Size (mm) | M8x1.25 |
| Length Measurement Type | Overall Length |
| Length (mm) | 30.00 |
| Material | Alloy Steel |
| Finish/Coating | Metric Blue |
| Full or Partial Threading | Fully Threaded |
| Thread Standard | Metric Coarse |
| Fastener Standard | DIN 7991 |
| Hex Key Size (mm) | 5.00 |
| Material Grade | Grade 12.9 |
