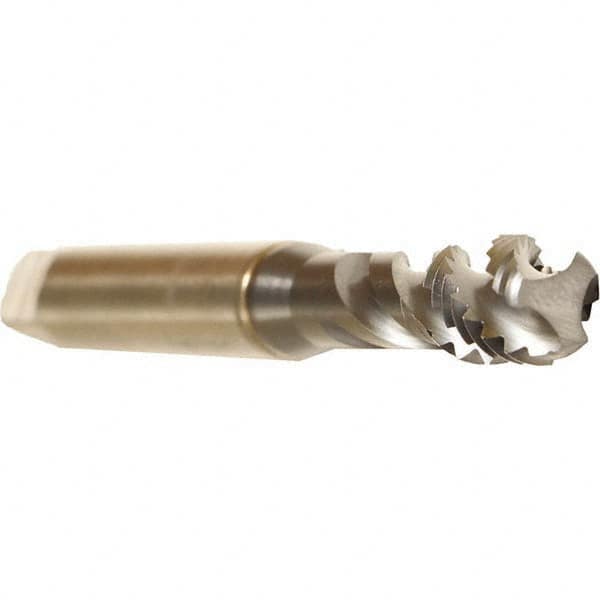

Emuge - 3/8-24 UNF, 3 Flute, TiCN Finish, Cobalt Spiral Point Tap - Bottoming Chamfer, Right Hand Thread, 3-15/16" OAL, 0.394" Thread Length, 0.381" Shank Diam, 2B Class of Fit
Item #: 73103269
Brand: Emuge
Model #: BU519400.5045
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Titanium carbonitride (TiCN) is harder and more wear-resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 3/8-24 |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Class of Fit | 2B |
| Thread Limit | H3 |
| Finish/Coating | TiCN |
| Material | Cobalt |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.9370 |
| Oversize | No |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 0.3940 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Square Size (Decimal Inch) | 0.2860 |
| Material Application | Acid Resistant Steel; Aluminum Alloys; Free Cutting Steel; Heat Treated Steel; Heat-Treated Materials; High Alloy Steel Castings; Nickel; Nickel Alloys; Stainless Steel; Steel Castings; Structural Steel; Titanium Alloys; Tool Steel |
