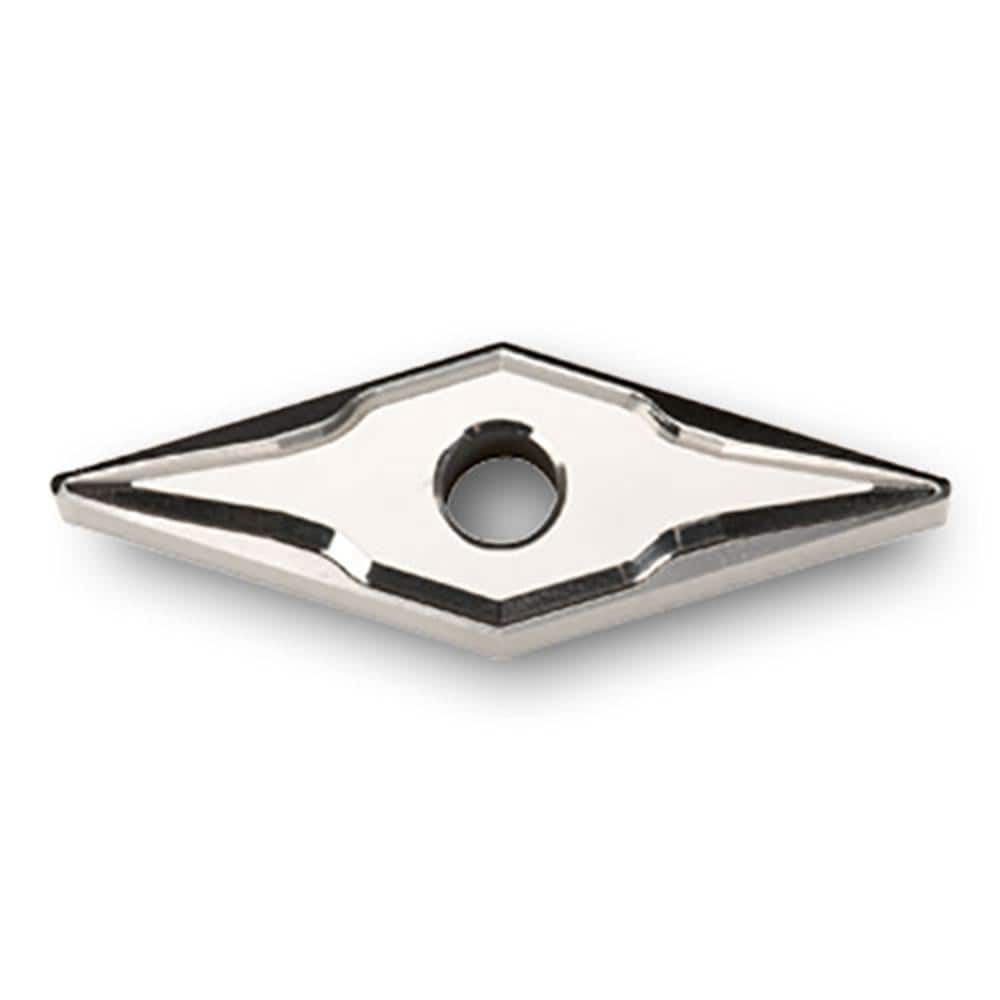

Turning Insert: VNGG330ML K10, Solid Carbide Uncoated Finish, Neutral, 0.6540″ Long, 3/8″ Inscribed Circle, 0.0040″ Corner Radius, 35.0 ° N/A Diamond, Series VNGG
Item #: 73099442
Brand: Ingersoll Cutting Tools
Model #: 5519356
Product Specifications
| Insert Style | VNGG |
| Insert Shape Code | V |
| Insert Size Code | 330 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | K10 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Width (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Included Angle | 35.0 |
| Relief Angle | 0 |
| Series | VNGG |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6540 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; K; N |
| Ansi Code | VNGG330MLK10 |
| Iso Code | VNGG160401ML K10 |
| Chip Breaker | ML |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Coating/Finish | Uncoated |
