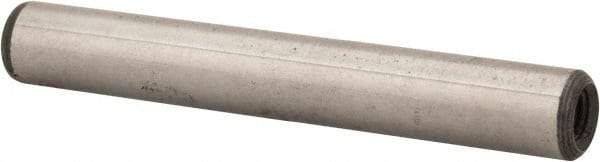

Jergens - 5/16" Diam x 2-1/4" Pin Length Alloy Steel Pull Out Dowel Pin - C 47-58 & C 60-64 (Surface) Hardness, 1 Beveled & 1 Threaded End
Item #: 73078842
Brand: Jergens
Model #: 31613
Exact Tooling IR#: 04
Features and Benefits
Standard pull out styles are designed for easy removal when frequent reassembly is required. They have a smooth finish and are used in applications featuring a through-hole.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| Type | Standard Pull Out |
| Material | Alloy Steel |
| Pin Diameter (Inch) | 5/16 |
| Pin Length (Decimal Inch) | 2.2500 |
| Pin Length (Inch) | 2-1/4 |
| Hardness | C 47-58; C 60-64 (Surface) |
| Fastener Standard | ASME B18.8.2 |
| System of Measurement | Inch |
| Thread Size | #10-32 |
| End Type | (1) Beveled; (1) Threaded |
| Diameter Tolerance (Decimal Inch) | -0.0001 to 0.0001 |
