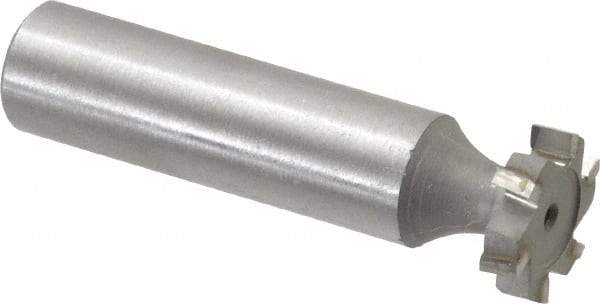

Made in USA - 5/8" Diam x 5/32" Face Width, Carbide-Tipped, 6 Teeth, Shank Connection Woodruff Keyseat Cutter - Uncoated, 2-5/32" OAL x 1/2" Shank, Staggered Teeth, ANSI 505, Old Standard 6 - Benchmark Tooling

Made in USA - 5/8" Diam x 5/32" Face Width, Carbide-Tipped, 6 Teeth, Shank Connection Woodruff Keyseat Cutter - Uncoated, 2-5/32" OAL x 1/2" Shank, Staggered Teeth, ANSI 505, Old Standard 6


Item #: 73040065
Brand: Made in USA
Exact Tooling IR#: 04

Features and Benefits

Staggered tooth cutters are used at higher speeds for larger and deeper cutting operations. They have fewer teeth than straight cutters for better chip removal from the workpiece.
Carbide tips cut faster than high speed steel. It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
Product Specifications
Connection Type Shank
Old Standard Number 6
American Standard Number (ANSI) 505
Cutting Diameter (Inch) 5/8
Cutting Diameter (Decimal Inch) 0.6250
Cutting Width (Inch) 5/32
Cutting Width (Decimal Inch) 0.1563
Tooth Configuration Staggered
Material Carbide-Tipped
Finish/Coating Uncoated
Shank Diameter (Inch) 1/2
Overall Length (Inch) 2.1563
Number of Teeth 6
Cutting Dia. Oversized for Resharpening No
Material Grade Micrograin
Cutting Width Tolerance (Decimal Inch) +0.0000/-0.0005
Weldon Flat No
