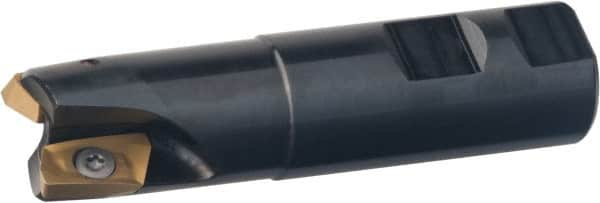

Kennametal - 1" Cut Diam, 0.64" Max Depth of Cut, 1" Shank Diam, 5.968" OAL, Indexable Square Shoulder End Mill - EC18.., EP18.. Inserts, Weldon Shank, 0° Lead Angle, Through Coolant
Item #: 73005142
Brand: Kennametal
Model #: 2267552
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 5.9680 |
| Lead Angle | 0 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.6400 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | Mill 1 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 3.6880 |
| Weldon Flat | Yes |
| Insert Compatibility | EC18.., EP18.. |
| Maximum RPM | 37000 |
