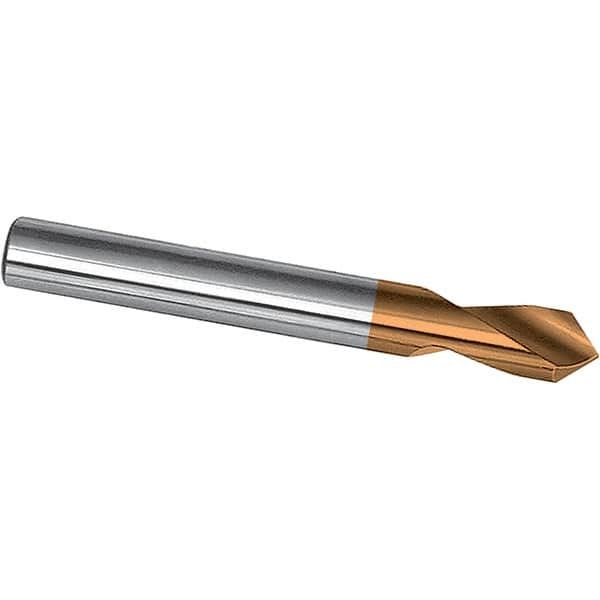

Magafor - 2mm Body Diam, 90°, 49mm OAL, Cobalt Spotting Drill
Item #: 31374150
Brand: Magafor
Model #: 80099502000
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature than TiN. As a result, it is better for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Body Diameter (mm) | 2.00 |
| Drill Point Angle | 90 |
| Spotting Drill Material | Cobalt |
| Spotting Drill Finish/Coating | TiAlN |
| Overall Length (mm) | 49.00 |
| Flute Length (mm) | 8.00 |
| Flute Length (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 2.0000 |
| Drill Bit Grade | High Performance |
| Length Designation | Short |
| Cutting Direction | Right Hand |
| Tool Application | Centering; Chamfering; Spot Drilling |
| Material Application | Hard Alloy |
| Series/List | 0995 |
