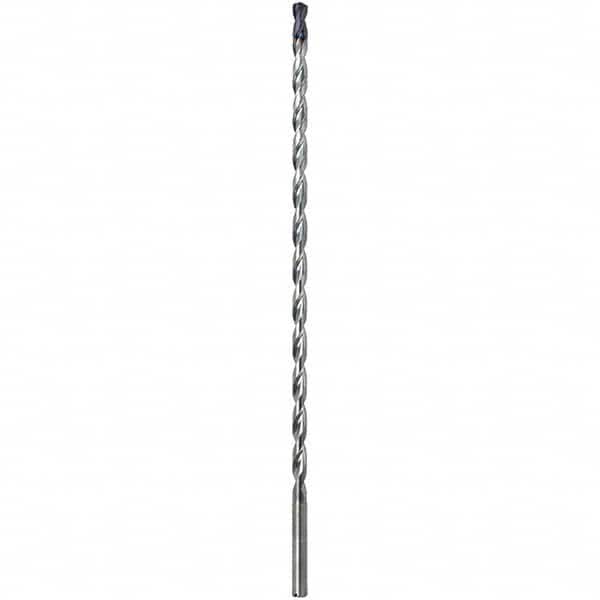

Guhring - 13mm 135° 2-Flute Solid Carbide Extra Length Drill Bit
Item #: 12190724
Brand: Guhring
Model #: 9065120130000
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, non ferrous materials, plastics, and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 13.00 |
| Drill Bit Size (Decimal Inch) | 0.5118 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Overall Length (mm) | 437.00 |
| Through Coolant | Coolant Through |
| Shank Diameter (mm) | 14.00 |
| Flute Length (mm) | 388.00 |
| Cutting Direction | Right Hand |
| Flute Length x Diameter Ratio | 25xD |
| Flute Type | Parabolic |
| Number of Flutes | 2 |
| Point Type | Double Margin |
| Shank Type | Oversized |
| Spiral Type | Regular Spiral |
| Maximum Drilling Depth (mm) | 368.50 |
| Shank Length (mm) | 45.00 |
| Threaded Shank | No |
| Drill Bit Diameter Tolerance (mm) | h7 |
| Web Thinning | RT100 T |
| Drill Bit Grade | High Performance |
| Material Grade | DK460UF |
| Series/List | 6512 |
